Verozinc Rolled Zinc

VEROZINC ROLLED ZINC

Since 1992, IEQSA is a regular supplier of Titanzinc coils, zinc sheets and zinc strips. More than two dozen manufacturers of gutters, down-pipes, elbows and roof-accessories, in Germany, France and other 14 European and Asian countries, are our regular customers.

Verozinc, our rolled titanzinc (titanium zinc) is manufactured as per the specifications of European norm EN 988. It is also approved for the manufacture of pipes and other rainwater accesories by the TIG point-welding method. Furthermore, we manufacture special qualities for the manufacture of zinc ornaments, for drawing and deep-drawing.

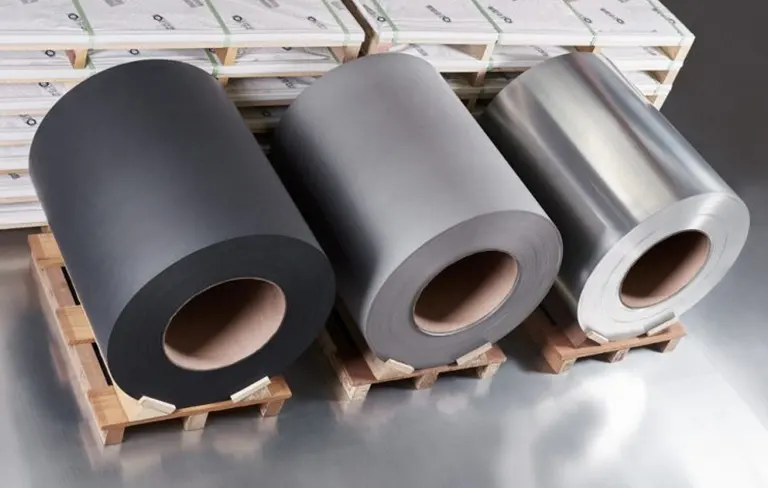

Verozinc is available in 3 surface finishes: Verozinc Nature (natural finish), Verozinc Prestige (grey color preweathered) and Verozinc Black (graphite color preweathered).

Important housing complexes, churches, public and private buildings, have been roofed with Verozinc, with optimum technical and aesthetic results. We invite you to visit our architectural references included here.

SEE OUR CATALOGUES

VIEW CERTIFICATES

Verozinc Natural finish rolled zinc for building (roofs, façades,rainwater goods,etc.)

1. Dimension Tolerances

DIMENSIONS

TOLERANCE

Thickness

± 0,02 mm

Width

+1 / -0 mm

Length

+3 / -0 mm

Lateral Curvature

≤ 1,5 mm/m

Flatness

≤ 2 mm

2. Mechanical Properties ( in the direction of rolling)

DESCRIPTION

GUARANTEED

Tensile Strength

≥ 150 N/mm2

Elongation

≥ 35 %

Elastic limit

≥ 100 N/mm2

Creep test

≤ 0,1 %

Bend test

No cracks on fold

3. Chemical Analysis

ELEMENT

CONTENT %

Zinc Quality

99,995 min

Copper

0,120 – 0,140

Titanium

0,065 – 0,075

Aluminum

0,003 – 0,006

Total Lead and Cadmium

0,003 max

* Dimensions, mechanical properties and chemical composition comply with Norm EN 988.

4. Presentation

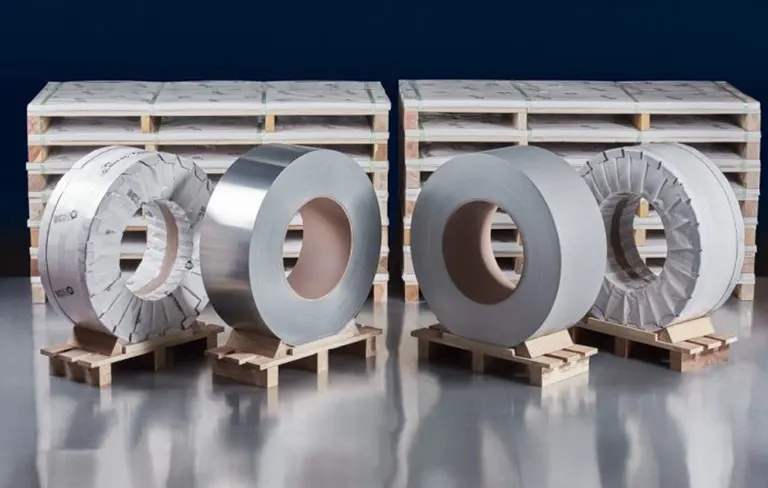

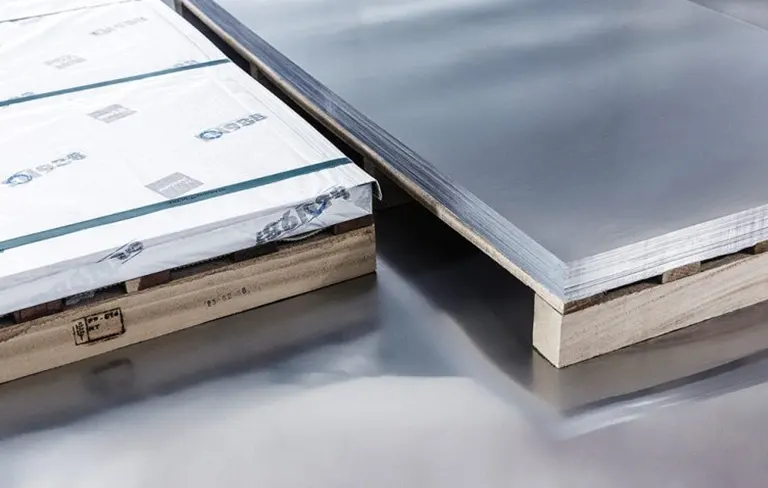

Sheets and coils in various thicknesses, widths and lengths, prepared according to customer`s requirements.

5. Packaging

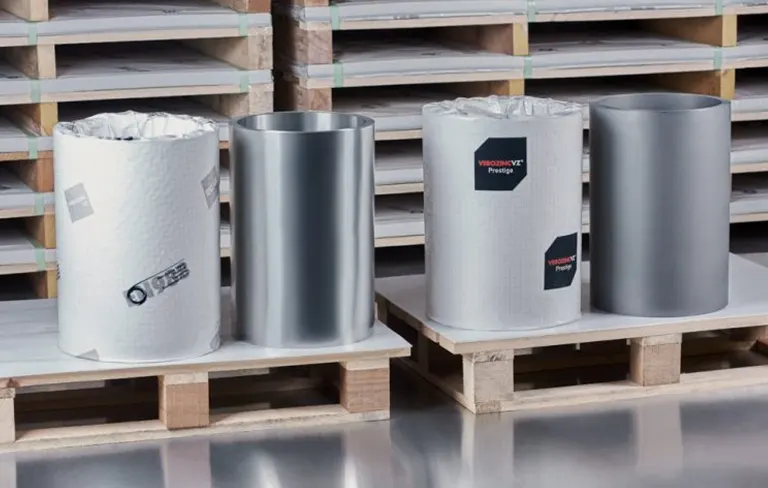

Our products are wrapped in a specially formulated VCI paper. The products are arranged on wooden pallets and secured by straps. Additional security elements are also used, such as corner and edge protectors for zinc sheets or carton cores for zinc coils. Our pallets comply with ISPM 15.
